Buddy 4000

Here you will be able to find all of the 3D printed pieces for Buddy 4000! You can download the .stls and print them on your own 3D printer. We have suggested settings in each piece section, but be sure to use what works best for your printer.

The 3D Viewer Mode uses WebGL. Some browsers may have a better experience than others, we highly recommend Chrome. You will definitely enjoy it much more ;)

You can download an archive of all the files here.

The archive includes the license info, all the .stls, as well as the raw Autodesk Inventor part files.

Please see the thanks section for the CERN OHL license information for these works.

If you have any questions, let us know in the forum!

ONWARDS WITH THE PRINTING!

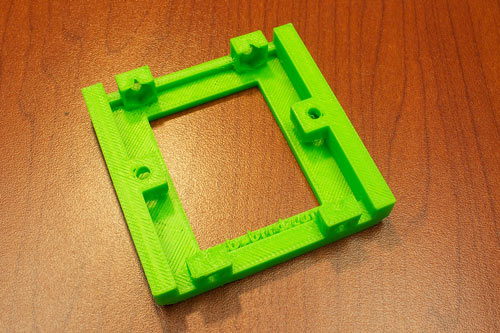

Body Front

View in 3D Mode

Settings & Info

Setting	Value
Supports	Full
Infill %	25
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	80
Travel rate (mm/s)	120
Temp (deg C)	220
Material	ABS
Colour	Main
Time (min)	44
Volume (solid) (cm^3)	16.59
Download .stl

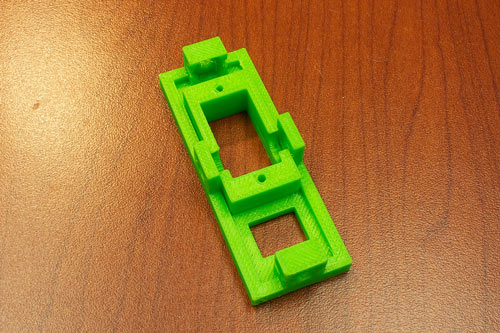

Body Side

View in 3D Mode

Settings & Info

Setting	Value
Supports	Full
Infill %	25
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	80
Travel rate (mm/s)	120
Temp (deg C)	220
Material	ABS
Colour	Main
Time (min)	22
Volume (solid) (cm^3)	7.4
Download .stl

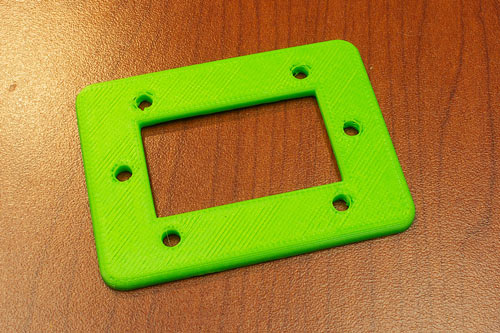

Body Bottom

View in 3D Mode

Settings & Info

Setting	Value
Supports	None
Infill %	40
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	80
Travel rate (mm/s)	120
Temp (deg C)	220
Material	ABS
Colour	Main
Time (min)	17
Volume (solid) (cm^3)	6.33
Download .stl

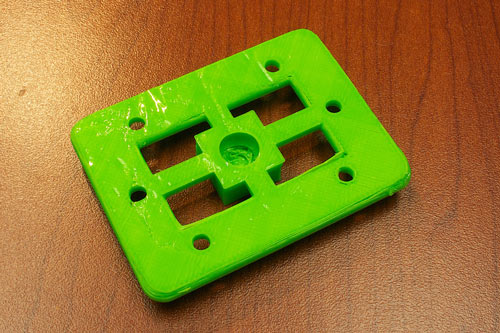

Body Top

View in 3D Mode

Settings & Info

Setting	Value
Supports	Full
Infill %	40
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	80
Travel rate (mm/s)	120
Temp (deg C)	220
Material	ABS
Colour	Main
Time (min)	23
Volume (solid) (cm^3)	8.39
Download .stl

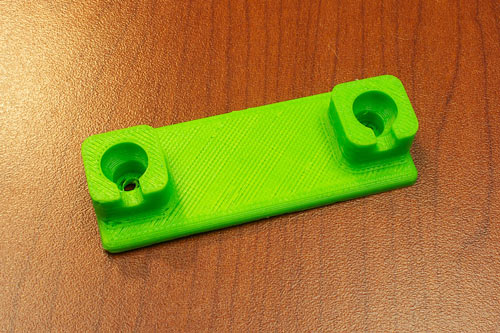

Leg Plate

View in 3D Mode

Settings & Info

Setting	Value
Supports	None
Infill %	60
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	80
Travel rate (mm/s)	120
Temp (deg C)	220
Material	ABS
Colour	Main
Time (min)	24
Volume (solid) (cm^3)	7.53
Download .stl

Head (Front & Back)

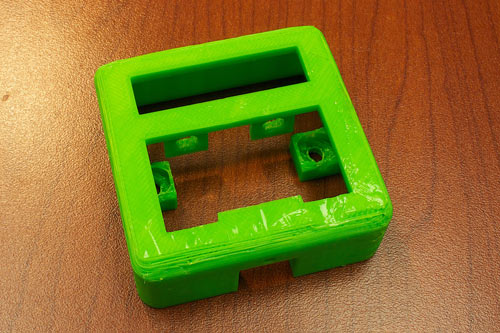

Head Front

View in 3D Mode

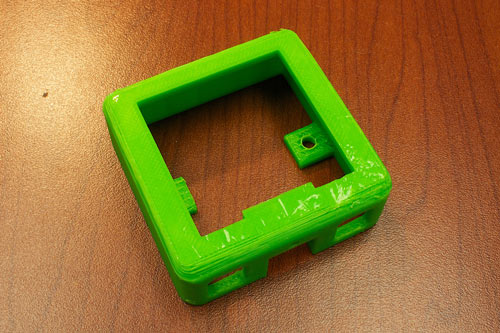

Head Back

View in 3D Mode

Settings & Info

Setting	Value
Supports	Full
Infill %	25
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	80
Travel rate (mm/s)	120
Temp (deg C)	220
Material	ABS
Colour	Main
Time (min)	53 (front) \| 48 (back)
Volume (solid) (cm^3)	16.44 (front) \| 14.42 (back)
Download .stl (front) Download .stl (back)

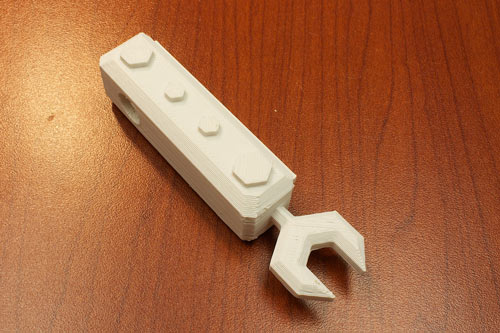

Arm

View in 3D Mode

Settings & Info

Setting	Value
Supports	Full
Infill %	15
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	80
Travel rate (mm/s)	120
Temp (deg C)	220
Material	ABS
Colour	Main
Time (min)	36
Volume (solid) (cm^3)	22.83
Download .stl (Left) Download .stl (Right)

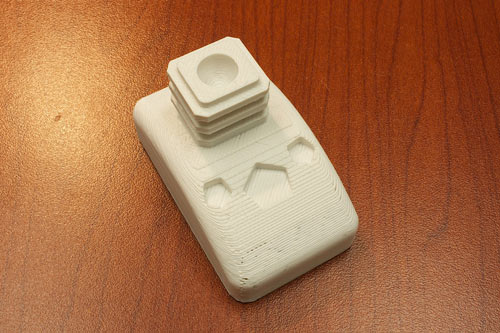

Foot

View in 3D Mode

Settings & Info

Setting	Value
Supports	None
Infill %	15
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	80
Travel rate (mm/s)	120
Temp (deg C)	220
Material	ABS
Colour	Main
Time (min)	40
Volume (solid) (cm^3)	38.42
Download .stl

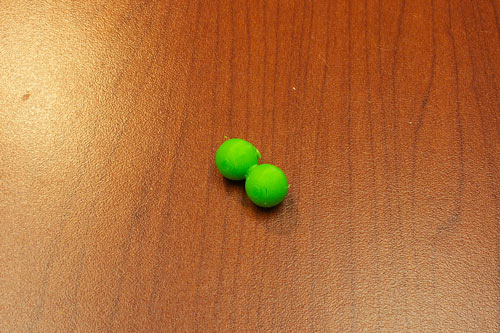

Ball-Ball

View in 3D Mode

Settings & Info

Setting	Value
Supports	Full
Infill %	100
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	30
Travel rate (mm/s)	30
Temp (deg C)	225
Material	ABS
Colour	Main
Time (min)	10
Volume (solid) (cm^3)	1
Download .stl

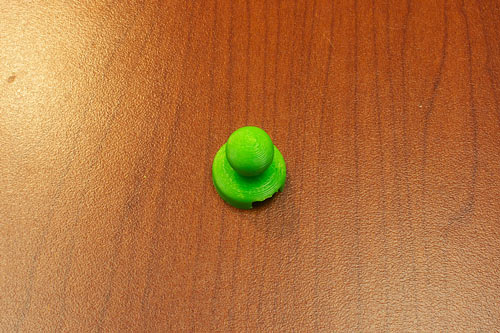

Ball-Servo

View in 3D Mode

Settings & Info

Setting	Value
Supports	Full
Infill %	100
Layer Height (mm)	0.27
# Shells	0
Feedrate (mm/s)	30
Travel rate (mm/s)	30
Temp (deg C)	225
Material	ABS
Colour	Main
Time (min)	12
Volume (solid) (cm^3)	1.17
Download .stl

Plates

The files for the plates & negatives can be found in the archive of all the files. See the intro for more details.
